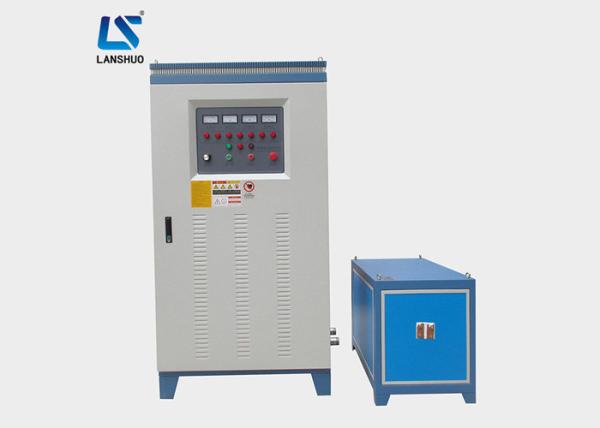

High Frequency steel bars pipes tubes Induction Heating machine
1. Main Features of IGBT induction heating machine:
1. High heating speed: more than 10 times higher than gas furnace's heating speed;
2. Less metal loss: the heating time is short, burning a small, compared to other heating methods, significantly reducing the amount of metal loss;
3. Little room occupying: small furnaces, the volume can be reduced to the extent of only three to five loading ingots, extrusion machines to meet production needs;
4. Environmentally friendly: no environmental pollution, good quality metal billets heated;
5. Mechanization and automation: good working conditions, can reduce the amount of operators;
6. Well-controlled temperature: metal billet heating process, the spindle temperature control can be achieved;
7. Low failure rate: can be configured side by side two induction furnaces (exchange use), to avoid shutdown, improve production efficiency.
2. Technical Parameters of LSW-200 IGBT induction heating machine:
| Model | LSW-200 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 200kw |
| Oscillation frequency | 10-20KHZ |
| Duty cycle | 100% |
| Cooling water flow | 50L/Min,0.2MPa |
| Weight | 380kg |
| Dimension (L*W*H ) | 1070*640*1870mm / 870*530*600mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating,quenching etc |
3. Brief introduction of IGBT induction heating machine:
Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.
4. Applications of IGBT induction heating machine:
(1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum, etc. heating.
(2) Forging: Whole and partial induction forging for metal bar.
(3) Workpiece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.
(4) Specific application for the induction forging heater: bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long / round / square / angle bar and billet heating, etc.
